Everything that happens within a well-designed sheet

Date: March 10, 2026

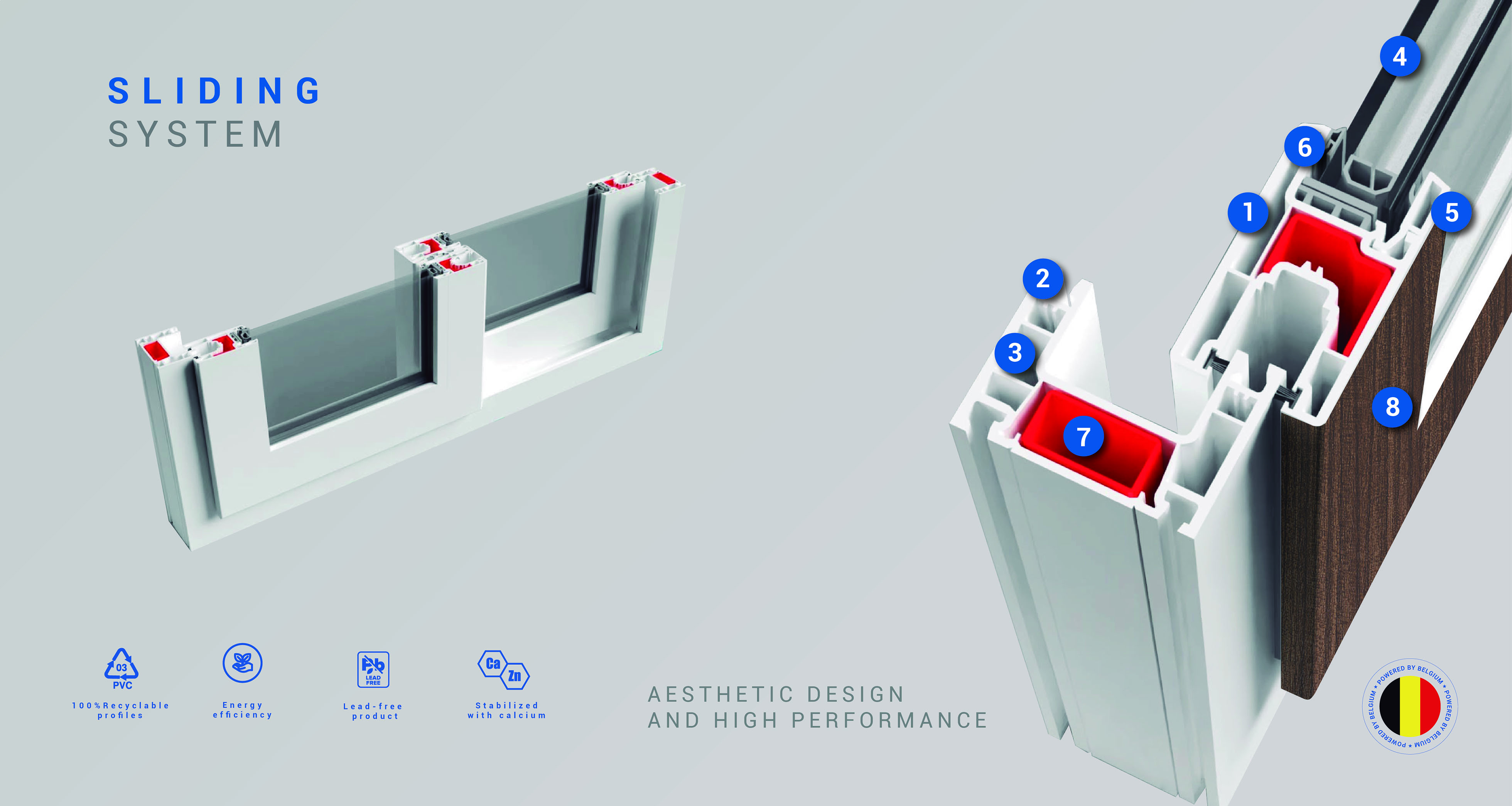

Profile Mobile PVC sheet

The sliding panel is the star of the show. It is the part that moves along the track and bears the weight of the glass. A good sliding panel does not deform, does not vibrate, and slides smoothly even over time. Its design allows for:

Integration of internal reinforcements

Accommodation of glazing

Maintenance of dimensional stability in the face of heat and humidity

Tropical mix formulation, allowing high resistance to UV radiation

PVC perimeter frame profile

The perimeter frame is the base where everything fits together. It is fixed in place during construction and supports the movable panel. It plays a key role:

Provides structural rigidity

Ensures alignment

Integrates drainage and sealing systems

Tropical mix formulation provides high resistance to UV radiation

Multipoint cameras

There is no solid block inside the profile. There are internal chambers, strategically distributed. These chambers:

Improve thermal insulation

Reduce sound transmission

Increase the rigidity of the profile

Glass (glazing)

Glass does not just let light through. It is a structural part of the whole. Depending on the project, it can be:

Single glazing

Double glazing

Solar control or safety glass

Glazing bead

The glazing bead is the piece that secures the glass inside the sash. It also maintains a clean and continuous aesthetic from the inside. Although discreet, it performs critical functions:

Secures the glazing

Contributes to the seal

Allows for maintenance or glass replacement

TPE (Thermoplastic Elastomer) seals

TPE seals run around the perimeter of the system and adapt to the movement of the sash. They are key to achieving a tight seal without affecting the smoothness of the sliding action. Thanks to their elasticity, they:

Seal out air and dust

Absorb small expansions

Maintain their shape over time

Hardware system: precision in motion

The hardware connects all the moving parts of the system. Good hardware ensures smooth sliding, secure closures, and a comfortable user experience day after day. It allows us to achieve:

Optimal operability

Watertightness

Opening sizes

Multi-point closures

Renolit colored sheet: design that protects

Finally, Renolit sheet is not just about aesthetics. It is the finishing touch that combines technical performance with architectural design. This sheet:

Adds color and texture (wood, solid colors, modern tones)

Protects the profile from UV rays

Improves the surface resistance of PVC

The profile structure in a PVC sliding door is a system designed down to the last millimeter. Each component plays a specific role, and together they achieve a balance between strength, comfort, airtightness, and design.

This is what makes a sliding door not only look good, but also function well for many years.
